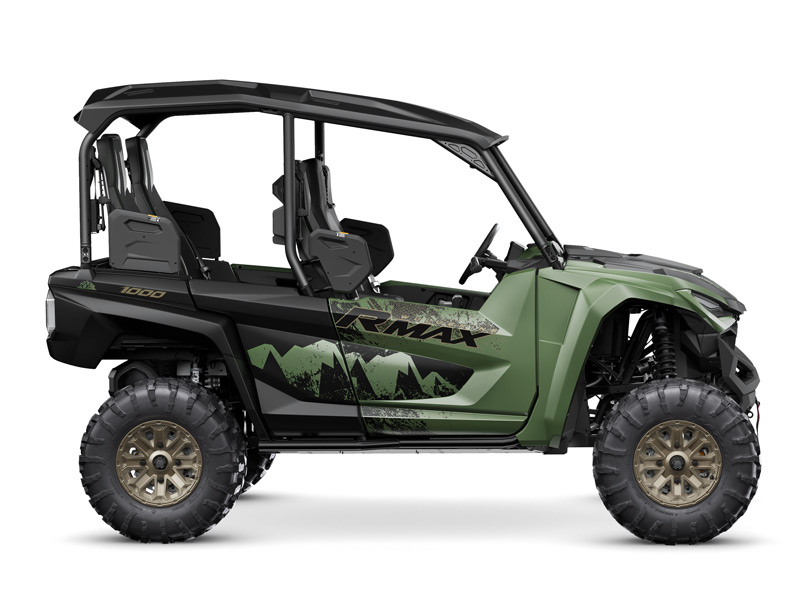

2021 WOLVERINE RMAX4 1000 XT-R

This incredible new four-seat powerhouse is designed to venture into terrain you never thought possible – with automotive-style comfort and confidence-boosting control.

Smooth power is produced by the class-leading new 999cc twin engine and push-button D-mode control with three drive positions – Sport, Trail and Crawl. The plush ride comes courtesy of long travel, high-performance Fox 2.0 QS3 shocks. Automotive-style luxuries will be familiar to car drivers while XT-R paint, a factory-fitted Warn winch, colour-matched wheels and aggressive Maxxis tyres combine to offer a unique, sophisticated ride.

RMAX 4 conquers the toughest terrain in comfort.

2021 WOLVERINE RMAX4 1000 XT-R

This incredible new four-seat powerhouse is designed to venture into terrain you never thought possible – with automotive-style comfort and confidence-boosting control.

Smooth power is produced by the class-leading new 999cc twin engine and push-button D-mode control with three drive positions – Sport, Trail and Crawl. The plush ride comes courtesy of long travel, high-performance Fox 2.0 QS3 shocks. Automotive-style luxuries will be familiar to car drivers while XT-R paint, a factory-fitted Warn winch, colour-matched wheels and aggressive Maxxis tyres combine to offer a unique, sophisticated ride.

RMAX 4 conquers the toughest terrain in comfort.

FEATURES

TECHNICAL SPECIFICATION

  • Engine Type Liquid-cooled, 4-stroke, DOHC, parallel twin
  • Displacement 999.0cc
  • Bore x Stroke 93.0 x 73.5
  • Compression Ratio 11.2 : 1
  • Lubrication SystemDry Sump
  • Fuel ManagementFuel Injection
  • IgnitionTCI
  • Starter SystemElectric
  • Fuel Tank Capacity34.8 L

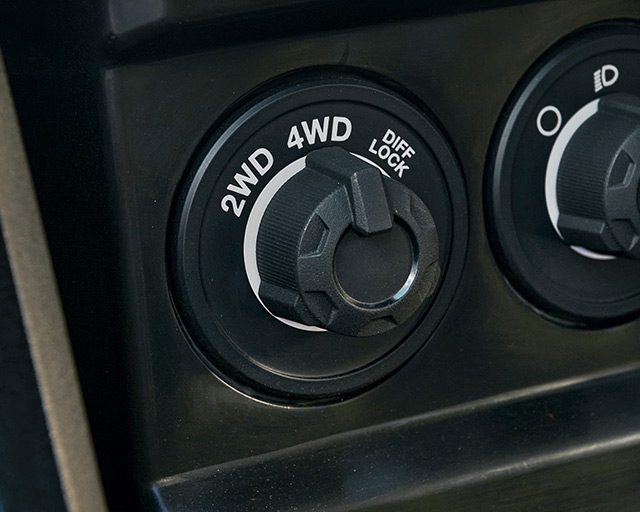

  • Final TransmissionOn-Command 3-way locking differential; 2WD, 4WD, full diff-lock 4WD
  • TransmissionUltramatic® V-belt, On-Command® 2WD, 4WD, 4WD with Diff-lock
  • Length 3255mm
  • Width 1676mm
  • Height 2110
  • Wheelbase 2291mm
  • Ground Clearance 340
  • Wet Weight 930 kg
  • Frame Type Steel tube

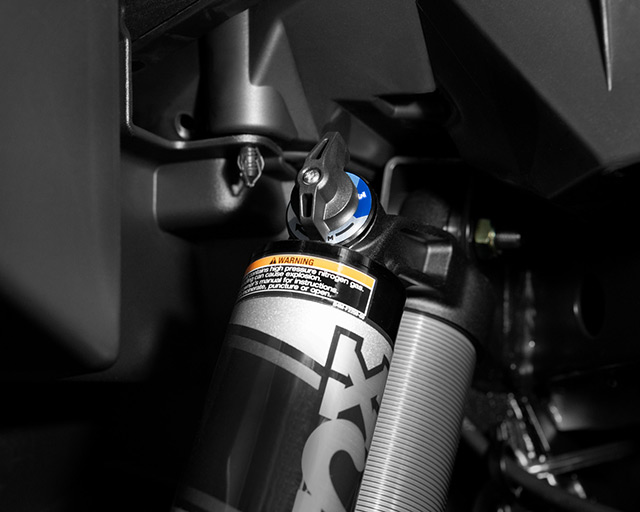

  • Suspension Front Independent double wishbone w/anti-sway bar, FOX QS3 piggyback shocks; 360mm travel
  • Suspension Rear Independent double wishbone w/anti-sway bar, FOX QS3 piggyback shocks; 388mm travel
  • Brakes Front Hydraulic dual discs
  • Brakes Rear Hydraulic dual discs
  • Tyres Front 29 x 9.00R-14 Maxxis Carnage
  • Tyres Rear 29 x 11.00R-14 Maxxis Carnage
