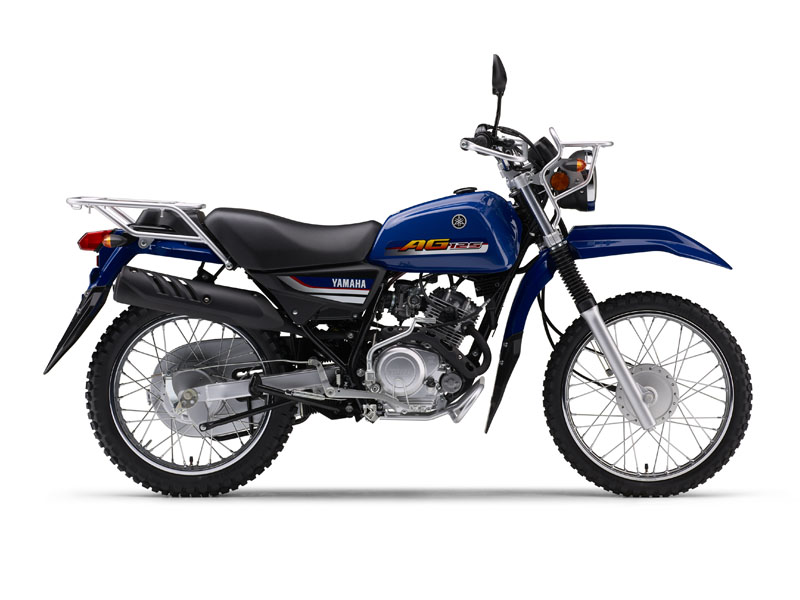

2023 AG125

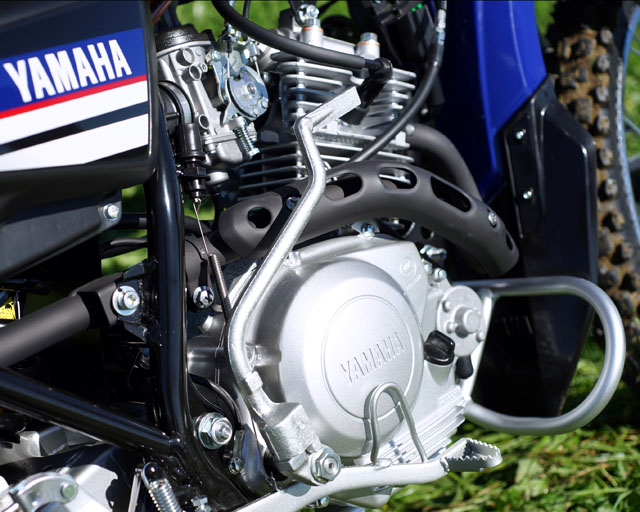

The AG125, a new take on an old favourite is powered by a reliable 124cc air cooled four-stroke engine that delivers plenty of smooth, controllable power. Its square bore and stroke give a responsive delivery that gets the power to the ground for traction in the muddiest conditions.

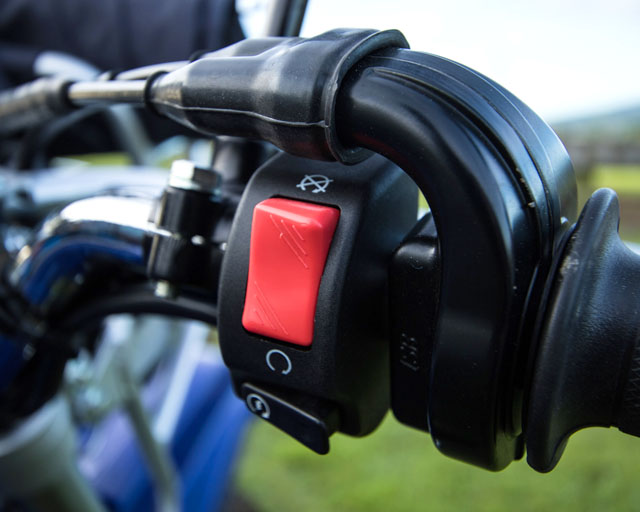

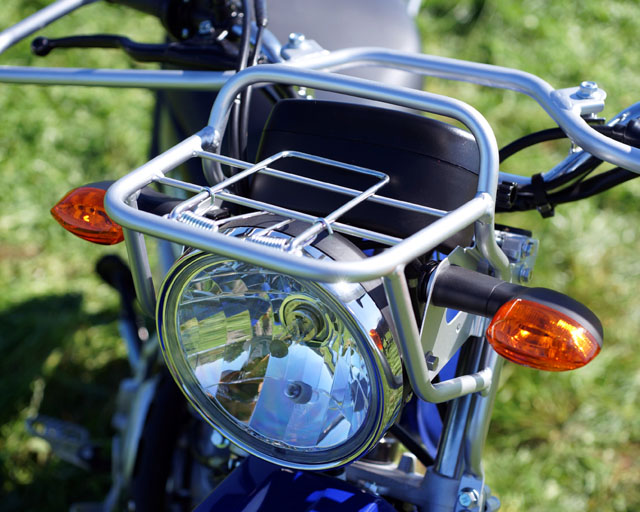

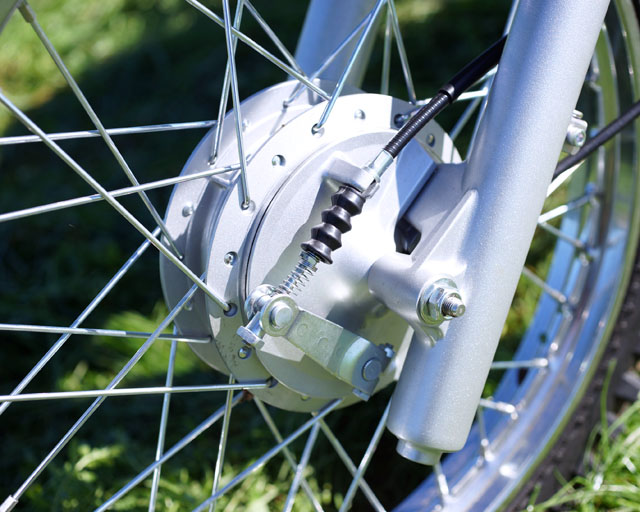

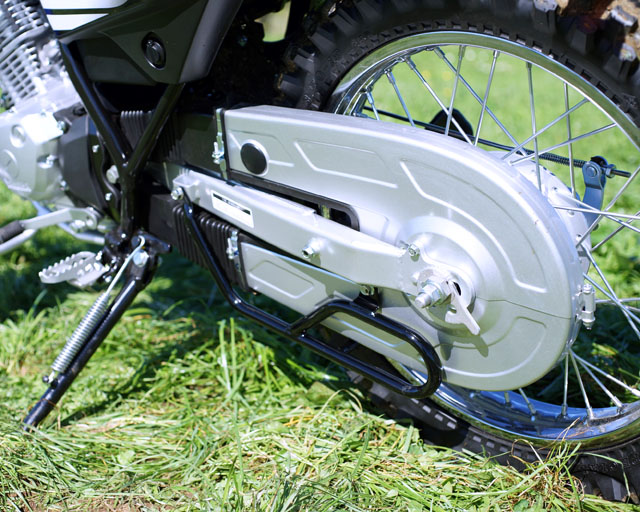

Sporting many of the traditional AG bike features found on the original AG100, this model is designed and built for our tough Aussie conditions with modern conveniences such as an electric start and monoshock suspension. Sealed drum brakes and a sealed chaincase keep the mud out of hard-working parts while heavy duty front and rear racks and plenty of chain, engine and handlebar protection make this new AG bike a new farmer favourite.

2023 AG125

The AG125, a new take on an old favourite is powered by a reliable 124cc air cooled four-stroke engine that delivers plenty of smooth, controllable power. Its square bore and stroke give a responsive delivery that gets the power to the ground for traction in the muddiest conditions.

Sporting many of the traditional AG bike features found on the original AG100, this model is designed and built for our tough Aussie conditions with modern conveniences such as an electric start and monoshock suspension. Sealed drum brakes and a sealed chaincase keep the mud out of hard-working parts while heavy duty front and rear racks and plenty of chain, engine and handlebar protection make this new AG bike a new farmer favourite.

FEATURES

TECHNICAL SPECIFICATION

  • Engine Type Air-cooled, 4-stroke, single cylinder
  • Displacement 124 cc
  • Bore x Stroke 54.0 x 54.0 mm
  • Compression Ratio 10.0 : 1
  • Lubrication SystemWet Sump
  • Fuel ManagementCarburettor
  • IgnitionCDI
  • Starter SystemElectric and Kick
  • Fuel Tank Capacity11 L
  • Final TransmissionChain
  • TransmissionConstant mesh 5-speed
  • Length 2110 mm
  • Width 940 mm
  • Height 1095 mm
  • Seat Height 800 mm
  • Wheelbase 1350 mm
  • Ground Clearance 225 mm
  • Wet Weight 113 kg
  • Frame Type Semi double cradle
  • Suspension Front Telescopic fork, 180mm travel
  • Suspension Rear Swingarm, 130mm travel
  • Brakes Front Drum
  • Brakes Rear Drum
  • Tyres Front 2.75-19-4PR Tube type
  • Tyres Rear 3.50-18-4PR Tube type
