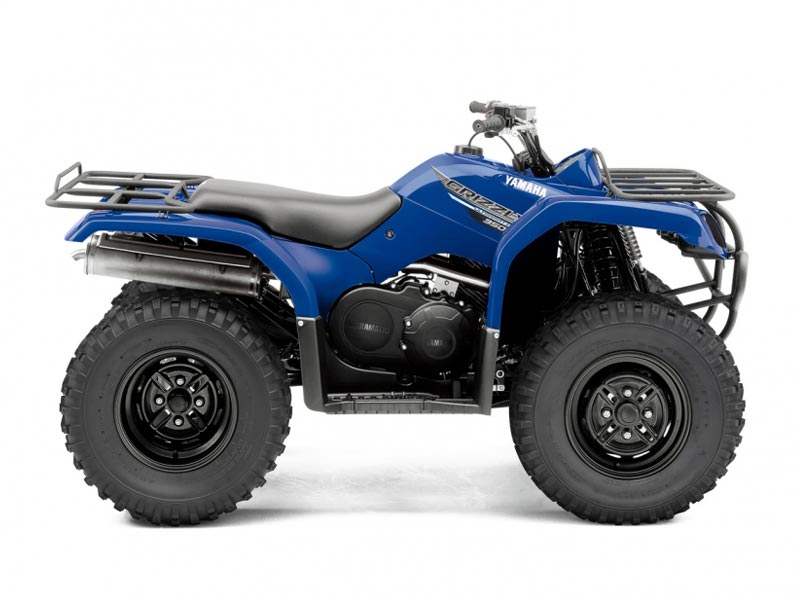

2021 Grizzly 350 2WD
Full-sized 2×4, full-sized capability, in an affordable package – that’s Grizzly 350. Under the bonnet you’ll find none other than Yamaha’s proven and trusted 348cc air-/oil-cooled four-stroke single, famous for its toughness and robust build quality. It transmits its power through Yamaha’s legendary Ultramatic® V-belt transmission.
Grizzly 350 has the full-featured list of appointments and capabilities, the peace of mind of famous Yamaha build quality, and a highly competitive price. Grizzly 350 2X4 – With highlevel Ultramatic® tranny, suspension and brakes, you’ll be hard pressed to find more grunt in this capacity.
All Yamaha Utility ATV and ROV now come with 3 year factory warranty.

2021 Grizzly 350 2WD
Full-sized 2×4, full-sized capability, in an affordable package – that’s Grizzly 350. Under the bonnet you’ll find none other than Yamaha’s proven and trusted 348cc air-/oil-cooled four-stroke single, famous for its toughness and robust build quality. It transmits its power through Yamaha’s legendary Ultramatic® V-belt transmission.
Grizzly 350 has the full-featured list of appointments and capabilities, the peace of mind of famous Yamaha build quality, and a highly competitive price. Grizzly 350 2X4 – With highlevel Ultramatic® tranny, suspension and brakes, you’ll be hard pressed to find more grunt in this capacity.
All Yamaha Utility ATV and ROV now come with 3 year factory warranty.
FEATURES

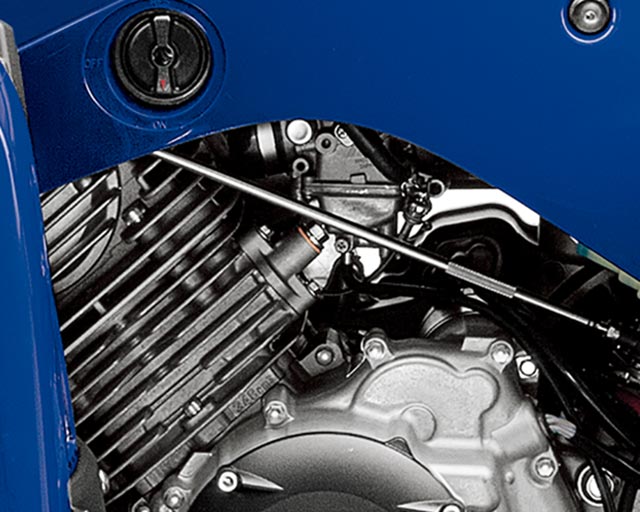

Fuel-Efficient And Low Maintenance
Semi-oval slide 33mm Mikuni® carburettor and high-output DC-CDI ignition deliver excellent throttle response and engine performance at all rpm. Automatic cam chain tensioner reduces engine maintenance. Stainless steel muffler and header design provides superior power characteristics, exhaust sound and unmatched durability.

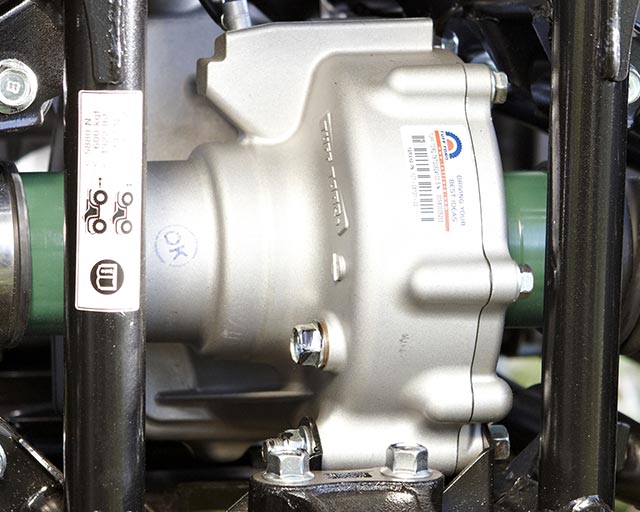

Rear Sealed Drum Brakes
The Grizzly 350 rear sealed drum brake reduces maintenance by keeping out dirt and debris that causes premature wear.

500kg Towing Capacity
Despite its small stature the Grizzly 350 can haul and impressive 500kg.

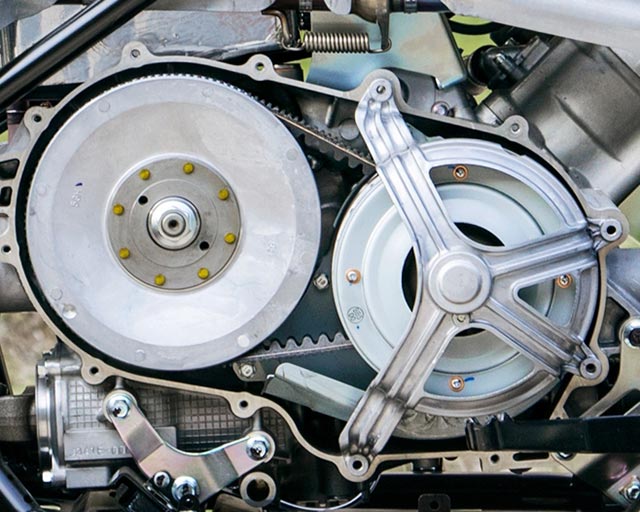

Ultramatic Transmission
Grizzly’s Ultramatic® transmission features a gated shifter, dual-range (Hi/Lo) drive plus reverse gear, and is the most advanced—and durable—CVT drive system available. An automatic centrifugal clutch maintains constant belt tension for reduced belt wear and a sprag clutch delivers natural all-wheel engine braking. Fully sealed drive case keeps out water and debris to minimise belt slippage, and a no-tools side cover drain makes it a snap to get rid of what little does sneak in.

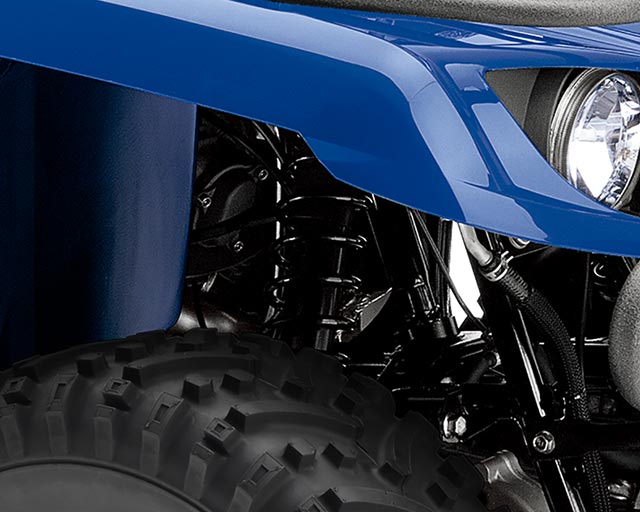

Farm Ready Suspension
The front suspension system is an independent double wishbone with a five position preload adjustment shock absorber providing an impressive 160mm stroke. The rear suspension system features a robust swingarm, five position preload adjustable shock absorber with a 180 mm stroke.

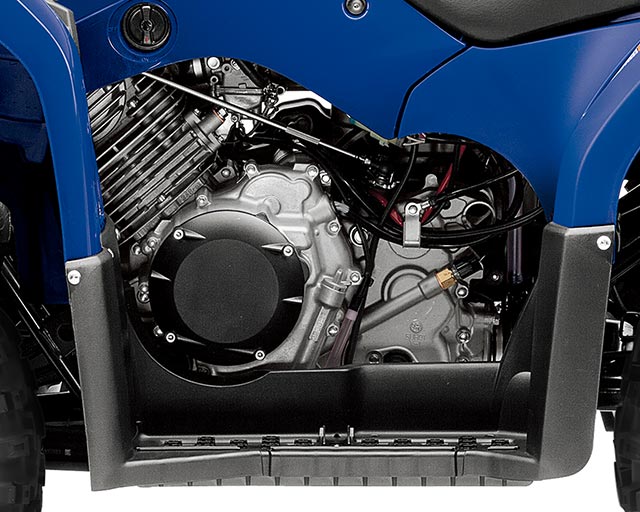

348cc Air-Oil-Cooled 4 Stroke Engine
The power-packed, Grizzly 350 Automatic carries a lot of advanced Yamaha ATV technology in an affordable package. Its rugged and reliable 348cc air-/oil-cooled, SOHC four-stroke single produces stump-pulling bottom-end power and loves to rev.

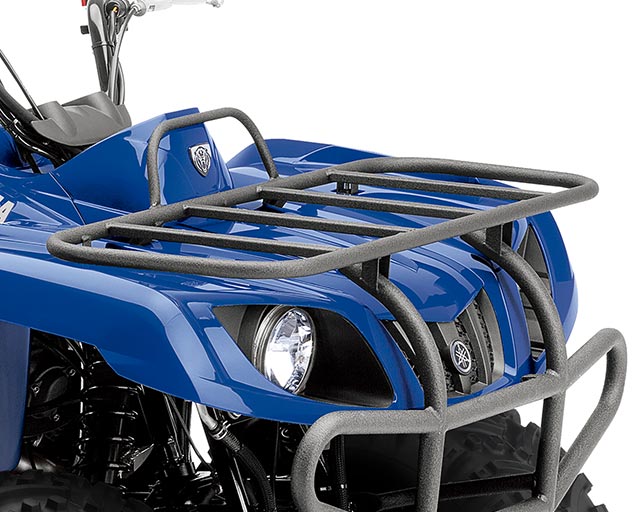

120kg Captivity Cargo Racks
Rugged, large-diameter steel cargo racks with durable wrinkle paint finish can pack a total of 120kg combined 40kg at the front and 80kg at the rear.
TECHNICAL SPECIFICATION

- Engine Type Air-cooled, 4-stroke, SOHC, 2 valve, single cylinder
- Displacement 348 cc
- Bore x Stroke 83.0 x 64.5 mm
- Compression Ratio 9.2 : 1
- Lubrication SystemWet sump
- Fuel ManagementBSR33 x 1
- IgnitionDC - CDI
- Starter SystemElectric
- Fuel Tank Capacity13.5 L
- Final TransmissionShaft
- TransmissionUltramatic® V-belt with all-wheel engine braking; F, N, R
- Length 1984 mm
- Width 1085 mm
- Height 1120 mm
- Seat Height 827 mm
- Wheelbase 1233 mm
- Ground Clearance 245 mm
- Wet Weight 238 kg
- Frame Type Steel tube
- Suspension Front Independent double wishbone, 160mm travel
- Suspension Rear Swingarm, 180mm travel
- Brakes Front Hydraulic dual discs
- Brakes Rear Drum
- Tyres Front AT25 × 8-12
- Tyres Rear AT25 × 10-12
