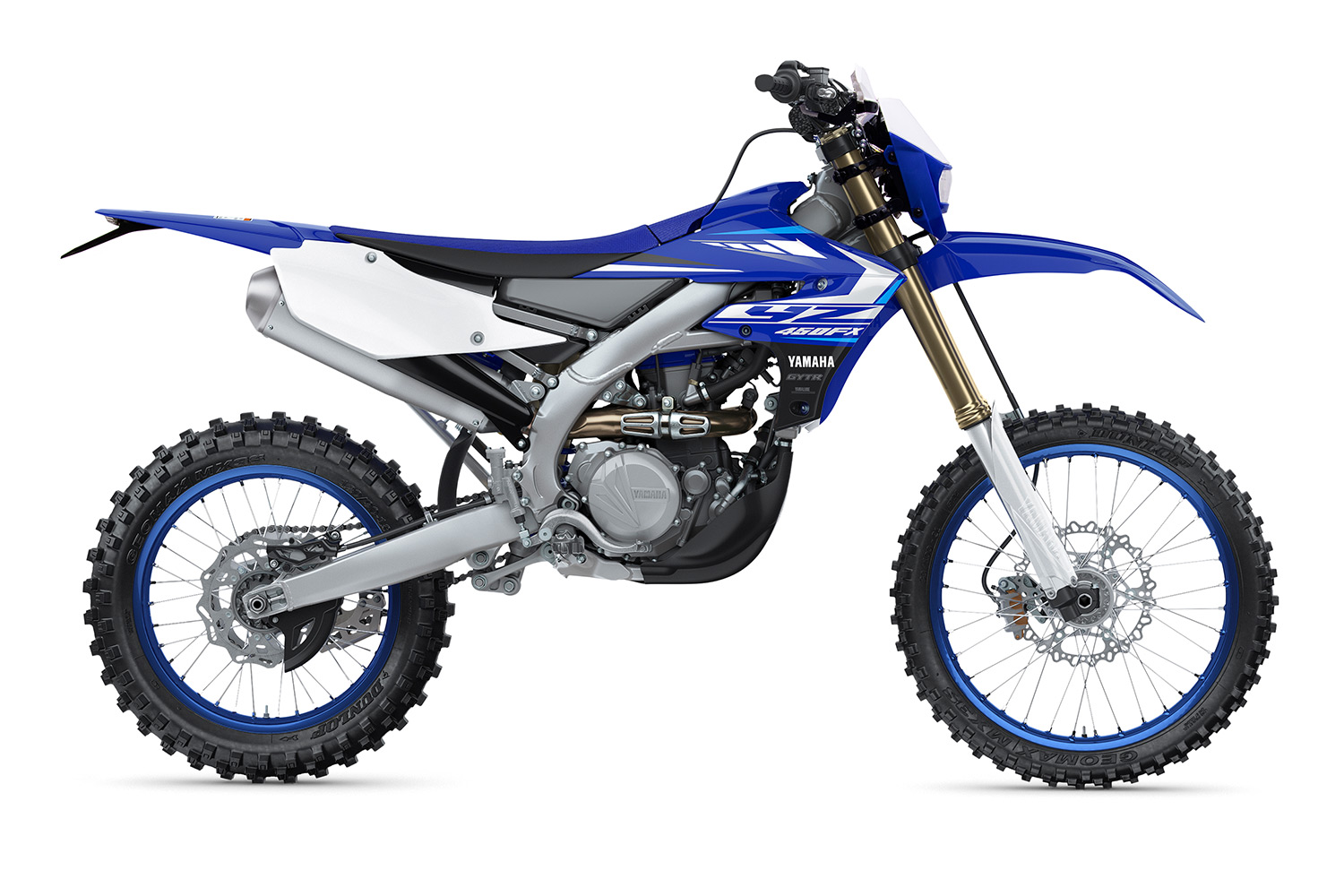

2021 YZ450FX
The YZ450FX runs all the latest frame, suspension, engine and electronics upgrades found on the YZ450F – including the Yamaha’s exclusive smartphone tuning. We’ve developed the FX specifically for off-road competition. So as well as enduro engine and suspension settings, the FX has an 18 in rear wheel, bashplate, sealed O-ring chain, fuel level warning indicator and an aluminium sidestand. The Australian model comes with off road kit fitted as standard that makes it eligible for recreational registration in applicable states.
YZ450FX – when you want to push in the bush.

2021 YZ450FX
The YZ450FX runs all the latest frame, suspension, engine and electronics upgrades found on the YZ450F – including the Yamaha’s exclusive smartphone tuning. We’ve developed the FX specifically for off-road competition. So as well as enduro engine and suspension settings, the FX has an 18 in rear wheel, bashplate, sealed O-ring chain, fuel level warning indicator and an aluminium sidestand. The Australian model comes with off road kit fitted as standard that makes it eligible for recreational registration in applicable states.
YZ450FX – when you want to push in the bush.
FEATURES

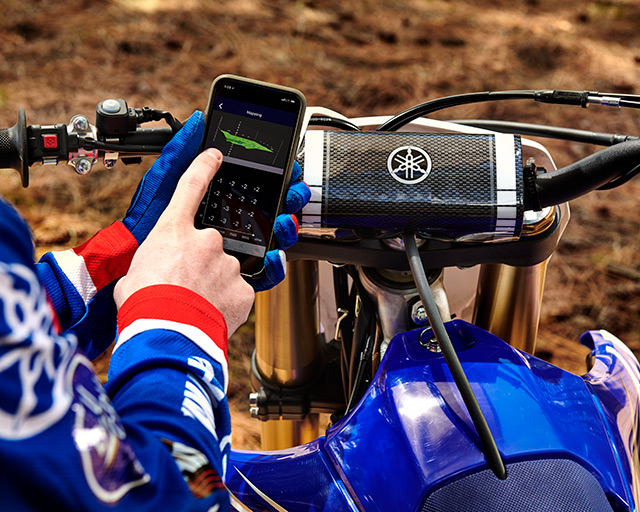

Yamaha Power Turner App
Yamaha’s exclusive Power Tuner app puts the flexibility and precision tunability of the GYTR® Power Tuner into your smartphone. Make fueling and ignition timing changes instantly and upload them to the bike via the onboard WiFi system for the ultimate in track-side tuning.

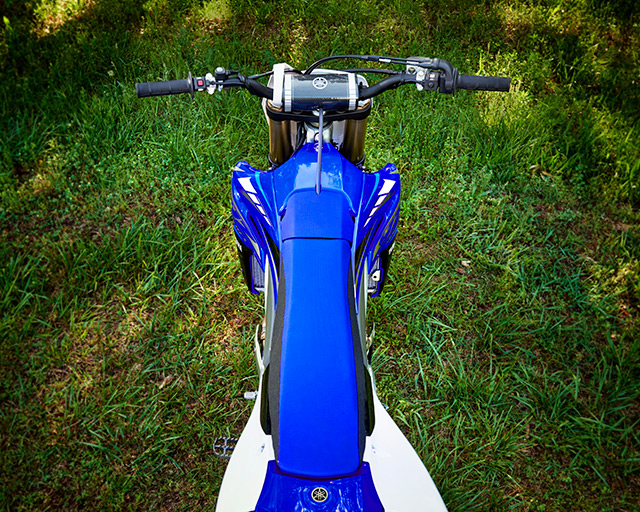

Compact Body And Seat Design
The YZ450FX features stylish bodywork from tip to tail, including a large 8.2 litre, mass-centralised fuel tank, the body design is narrow for more comfortable knee grip and control feeling, while the narrower and lower seat gives the rider additional room to move aboard the machine.

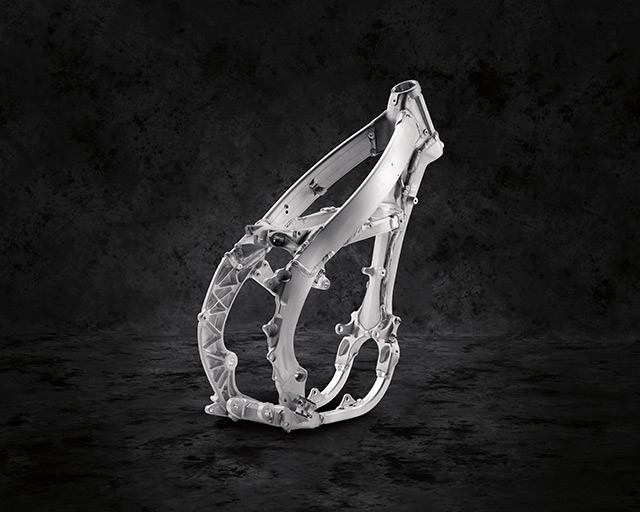

Bilateral Beam Frame
Yamaha’s bilateral beam aluminum frame features main spars, FX-specific engine mounts and an engine mounting position that centralises mass and provides an ideal balance between cornering feel and straight-line confidence.

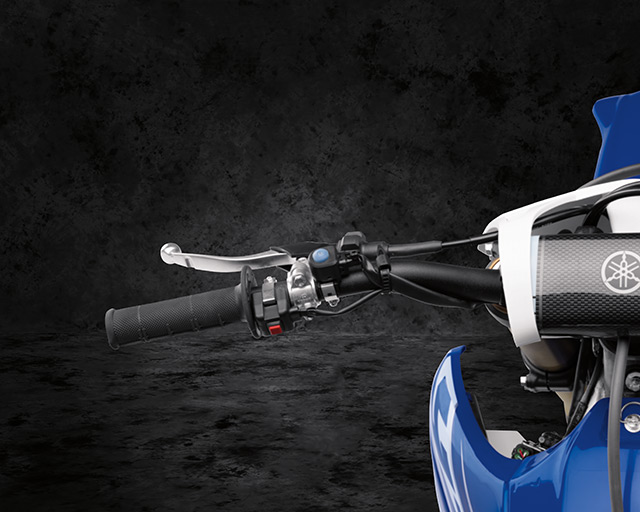

Adjustable Engine Mapping
A handlebar-mounted map switch allows the rider to quickly select between preloaded engine maps—loaded and configured in the Power Tuner app—to account for changing track and weather conditions.

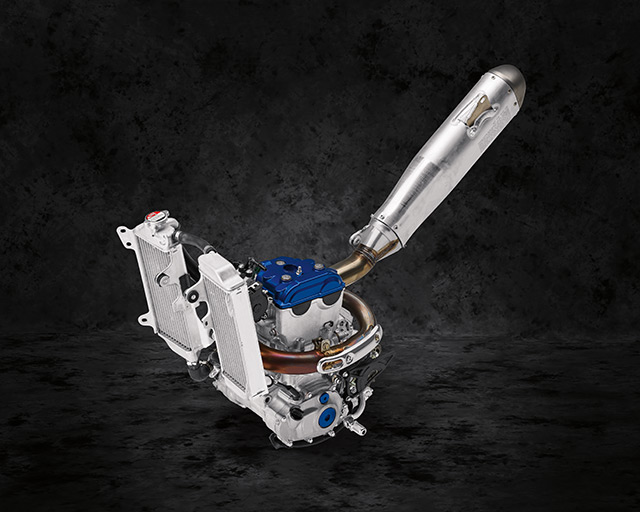

Potent Fuel-Injected Engine
A high-compression cylinder head, forged piston, aggressive cam profiles, cylinder geometry and much more work together to give YZ450FX riders the ideal power spread in challenging off-road racing conditions.

Potent Fuel-Injection Engine
A high-compression cylinder head, forged piston, aggressive cam profiles, cylinder geometry and much more work together to give YZ450FX riders the ideal power spread in challenging off-road racing conditions.
TECHNICAL SPECIFICATION

- Engine Type Liquid-cooled, 4-stroke, DOHC, 4-valve
- Displacement 450.0
- Bore x Stroke 97.0 x 60.9 mm
- Compression Ratio 12.8 : 1
- Lubrication SystemWet Sump
- Fuel ManagementFuel Injection
- IgnitionTCI
- Starter SystemElectric
- Fuel Tank Capacity8.2
- Final TransmissionChain
- TransmissionConstant mesh 5-speed
- Length 2175 mm
- Width 825 mm
- Height 1270 mm
- Seat Height 955 mm
- Wheelbase 1480 mm
- Ground Clearance 320 mm
- Wet Weight 116 kg
- Frame Type Bilateral beam
- Suspension Front Telescopic forks, 310mm travel
- Suspension Rear Swingarm (link suspension), 318mm travel
- Brakes Front Hydraulic single disc, 270mm
- Brakes Rear Hydraulic single disc, 245mm
- Tyres Front 80/100-21 51m
- Tyres Rear 120/80-18 65m
COLOUR
