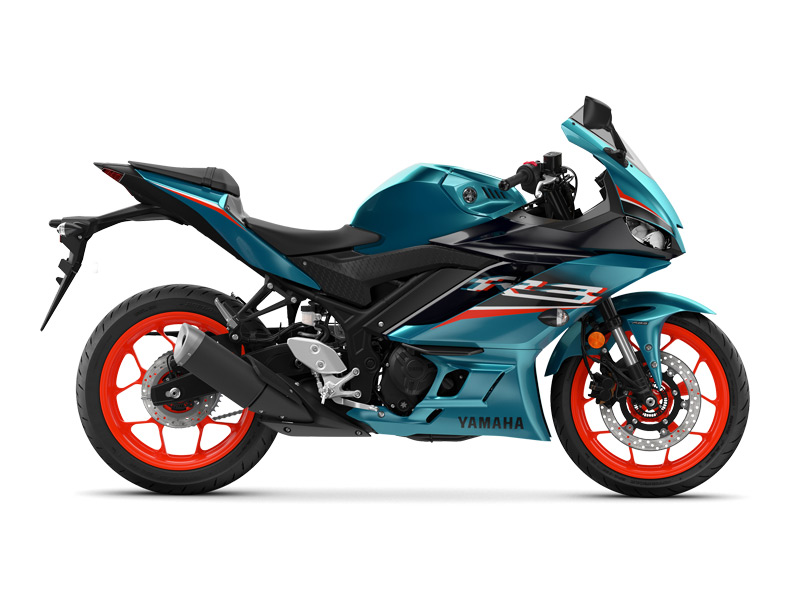

2024 YZF-R3
Learner Approved

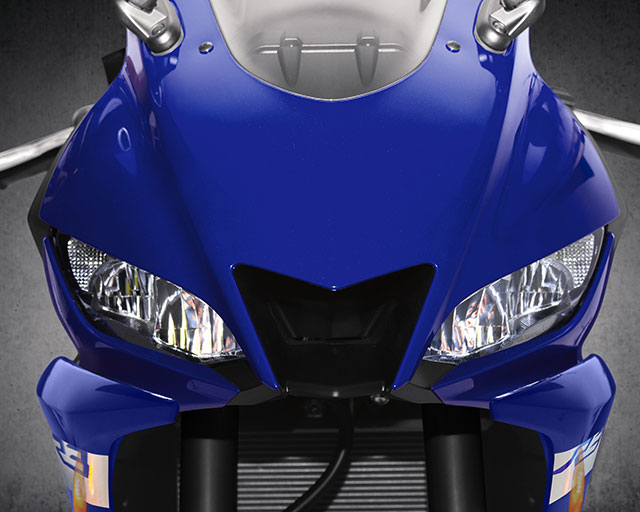

This lightweight supersport gets a whole new MotoGP-inspired look that makes it the most radical 300 on the street… or track. Its sleek new bodywork echoes Rossi’s race bike – and the aggressive new dual LED headlights underline its pure R-series DNA.
High-specification 37mm inverted front forks offer enhanced suspension feel and feedback – while a lower fuel tank and revised handlebar position improve rider ergonomics to give you greater comfort and control.
Step up to the plate, and enter R-World.
FEATURES

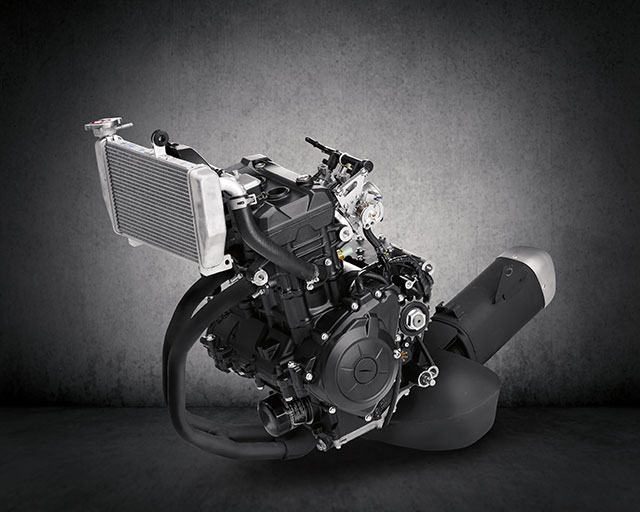

321cc Inline Twin Cylinder Engine
Featuring the latest combustion technology together with lightweight forged aluminium pistons and all-aluminium DiASil cylinders with an offset design, the smooth-running and quick-revving YZF-R3 engine produces easy-to-manage power.

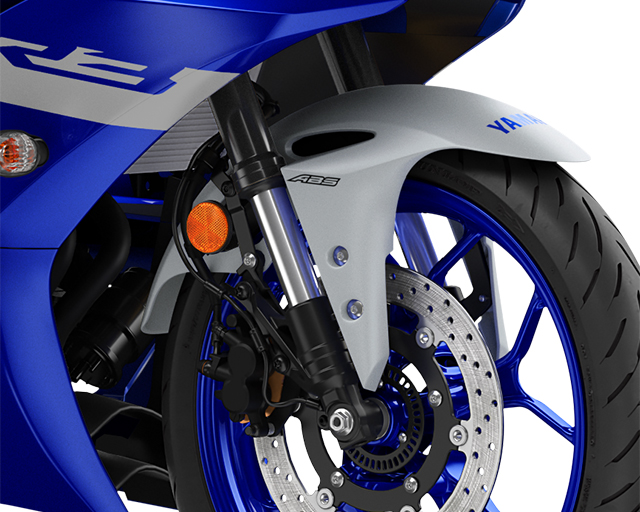

Inverted Front Forks
Achieving the right balance of comfort and sport riding performance for both street and track, the new KYB 37mm inverted fork features a larger surface area between the outer and inner tubes than on conventional forks. The inverted design significantly improves fork-leg rigidity, giving a sporty front-end feel and precise levels of surface feedback – while maintaining high levels of riding comfort.

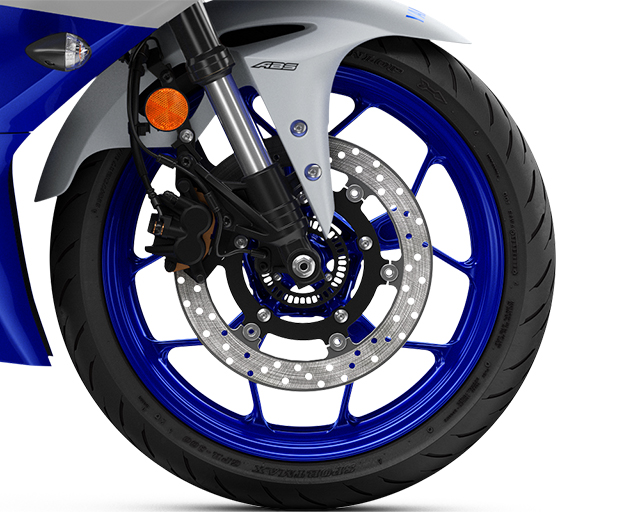

10-Spoke Cast Wheels Wtih ABS
Ten-spoke cast aluminium wheels, single 298mm front brake disc with a floating twin-piston caliper, 32 degrees of handlebar steering range, a 780mm seat height and approximately 50/50 front-rear weight ensures the YZF-R3 chassis delivers agile and responsive handling. For added control, Anti-Lock Braking is fitted as standard equipment raising confidence levels even further.

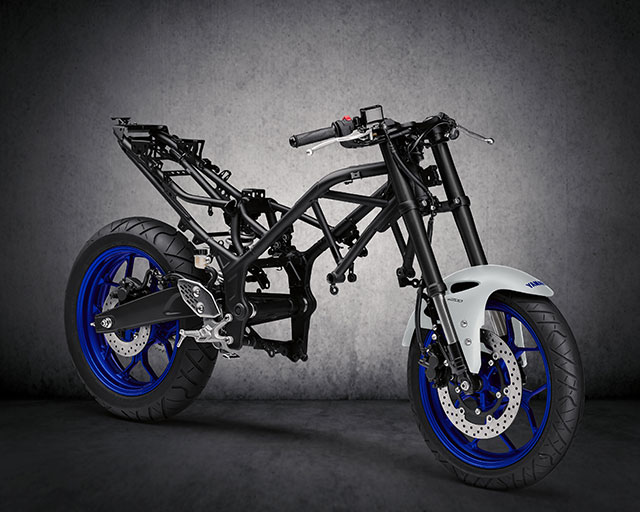

Lightweight Chassis
A lightweight high tensile steel tubular frame with a simple design incorporates the engine’s crankcase as a stressed structural member of the chassis. The long asymmetrical swingarm design ensures the efficient transmission of engine power to the rear wheel and delivers excellent straight-line stability.
Distinctive R-Series Styling
The YZF-R3 features a front fairing and windscreen design that pays homage to Yamaha’s flagship MotoGP race bike, the YZR-M1. The aggressive new look also achieves outstanding aerodynamic performance providing an increase of up to 8km/h in top speed. The YZR-M1 style central fairing duct also functions to direct airflow to the radiator, contributing to engine cooling performance.

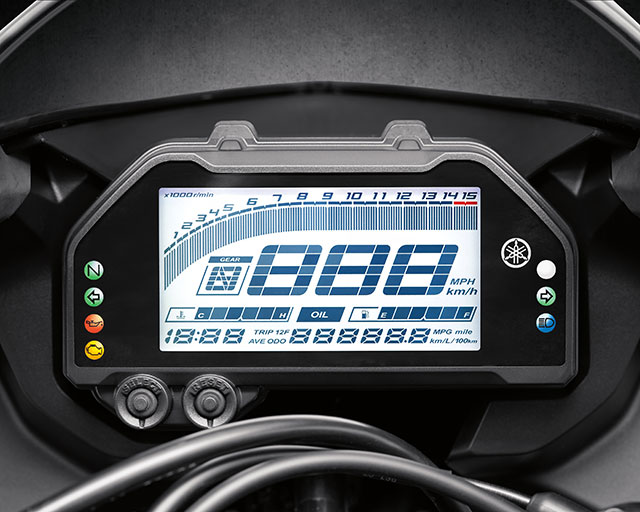

Information Rich Instrument Panel
A trick multi-function instrument panel includes an analogue tachometer and digital speedometer – and to underline its strong R-series heritage the R3’s instruments feature a shift timing indicator lamp similar to the design used on the YZF-R1. There’s also a gear position indicator, fuel gauge, water temperature gauge as well as fuel economy information, clock, trip-meters and more. All of course wrapped into an impressive liquid-crystal-type display.
TECHNICAL SPECIFICATION
- Engine Type Liquid cooled, 4-stroke, DOHC, 4-valve
- Displacement 321 cc
- Bore x Stroke 68.0 × 44.1 mm
- Compression Ratio 11.2 : 1
- Lubrication SystemWet sump
- Fuel ManagementFuel injection
- IgnitionTCI
- Starter SystemElectric
- Fuel Tank Capacity14 L
- Oil Capacity2.4 L
- Final TransmissionChain
- TransmissionConstant mesh 6-speed
- Length 2090 mm
- Width 730 mm
- Height 1140 mm
- Seat Height 780 mm
- Wheelbase 1380 mm
- Ground Clearance 160 mm
- Wet Weight 167 kg
- Frame Type Diamond
- Suspension Front USD Telescopic forks, 130mm travel
- Suspension Rear Swingarm, 125mm travel
- Brakes Front Hydraulic disc, 298mm with ABS
- Brakes Rear Hydraulic disc, 220mm with ABS
- Tyres Front 110/70-17M/C 54H(Tubeless)
- Tyres Rear 140/70-17M/C 66H(Tubeless)
