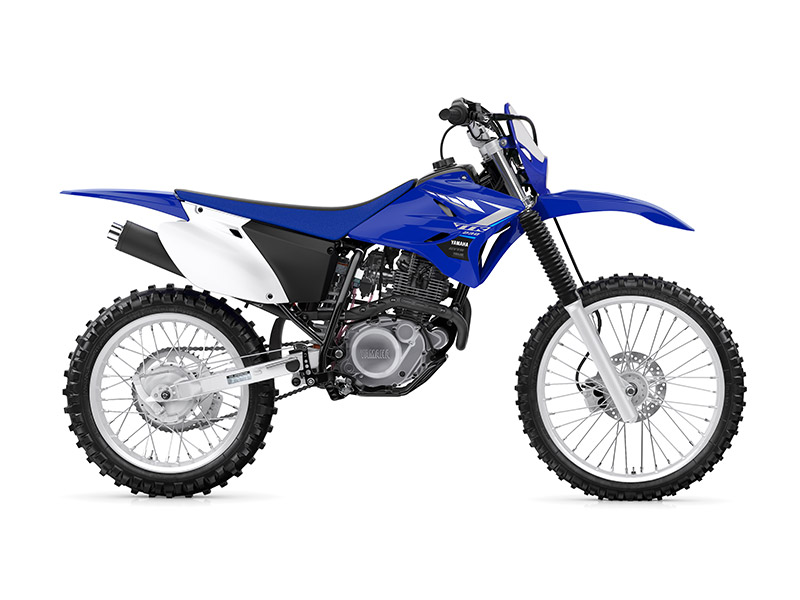

2023 TT-R230
Meet Mr – and Mrs – Versatile. YZ-inspired handling and looks, and a clockwork reliable 223cc air-cooled, SOHC four-stroke make the TT-R230 a great choice for beginner and intermediate riders.
A competition-style flat seat / tank junction makes for great rider mobility while the push button start is a no brainer. A low seat height on top of a long-travel suspension and generous ground clearance make this a serious trail bike that’s accessible to wide range of riders.
2023 TT-R230
Meet Mr – and Mrs – Versatile. YZ-inspired handling and looks, and a clockwork reliable 223cc air-cooled, SOHC four-stroke make the TT-R230 a great choice for beginner and intermediate riders.
A competition-style flat seat / tank junction makes for great rider mobility while the push button start is a no brainer. A low seat height on top of a long-travel suspension and generous ground clearance make this a serious trail bike that’s accessible to wide range of riders.
FEATURES

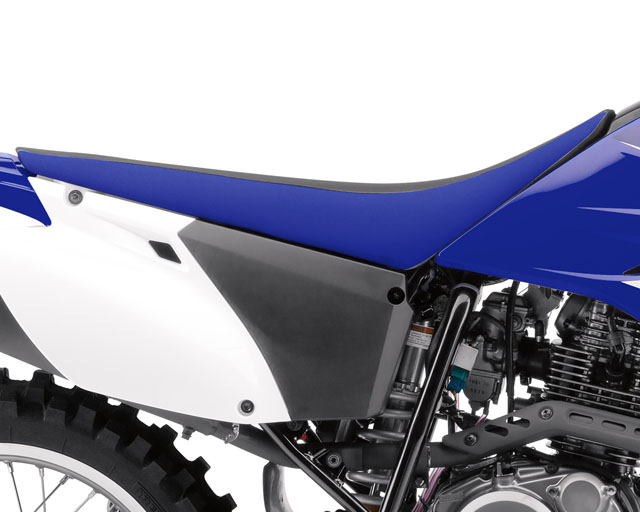

Low Seat Height
A low seat height atop long-travel suspension and 295mm of ground clearance makes this a very capable trailbike suitable to a wide range of riders.

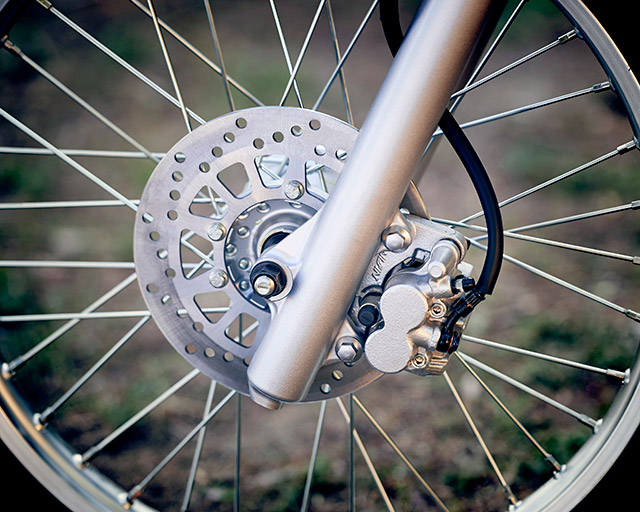

Superb Stopping Power
Front 220mm disc and 130mm rear drum brakes for powerful, confident stops. Full-size 21-inch front and 18-inch rear aluminium wheels keep unsprung weight down, while knobby tires provide motocross-spec grip.
6-Speed Gearbox
Smooth-shifting, six-speed transmission with heavy-duty clutch geared for maximum versatility and usable power delivery.

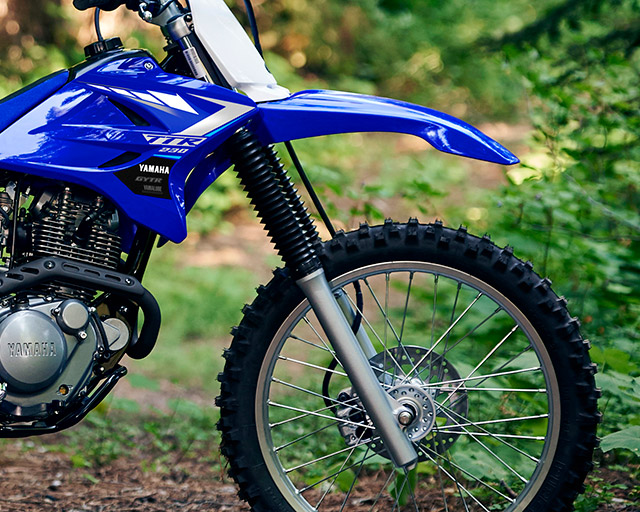

Plush Suspension
36mm front fork with 240mm of wheel travel provides plush, confidence inspiring control over rough terrain. 295mm of ground clearance should be enough to deal with almost any trail.

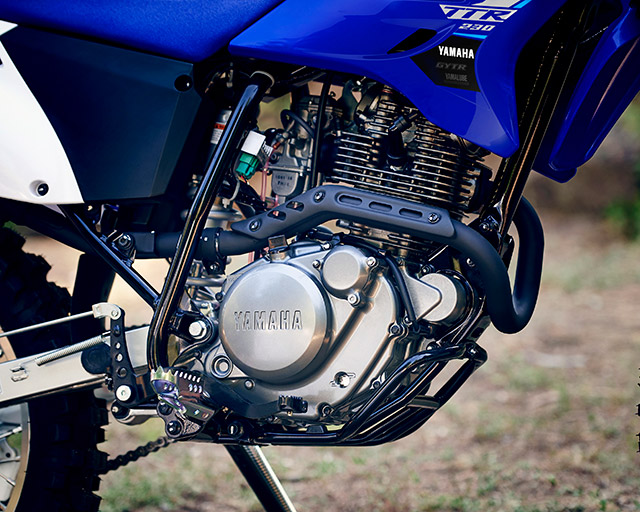

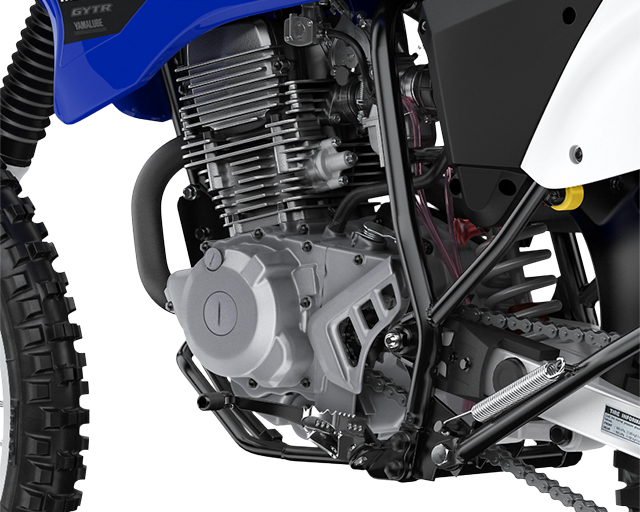

Air-cooled 223cc Four-Stroke
Confidence-inspiring handling and a rugged 223cc air-cooled, SOHC four-stroke producing predictable, broadband power make the TT-R230 a great choice for beginner and intermediate riders.
TECHNICAL SPECIFICATION
- Engine Type Air-cooled, 4-stroke, SOHC, 2-valve, single cylinder
- Displacement 223 cc
- Bore x Stroke 70.0 x 58.0 mm
- Compression Ratio 9.5 : 1
- Lubrication SystemWet sump
- Fuel ManagementY26P x 1
- IgnitionCDI
- Starter SystemElectric
- Fuel Tank Capacity8 L
- Final TransmissionChain
- TransmissionConstant mesh 6-speed
- Length 2065 mm
- Width 800 mm
- Height 1180 mm
- Seat Height 870 mm
- Wheelbase 1385 mm
- Ground Clearance 295 mm
- Wet Weight 114 kg
- Frame Type Diamond
- Suspension Front Telescopic forks, 240mm travel
- Suspension Rear Swingarm (link suspension), 220mm travel
- Brakes Front Hydraulic single disc, 220mm
- Brakes Rear Drum
- Tyres Front 80/100-21 51R Tube type
- Tyres Rear 100/100-18 59R Tube type
